Product Details

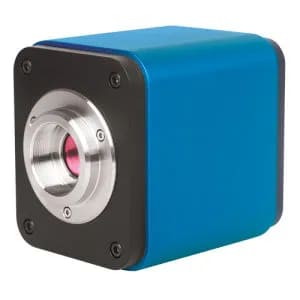

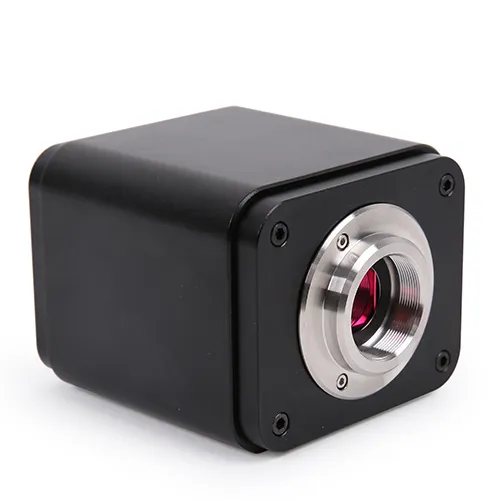

HDMI camera ULTRA CAM SERIES
- Product ID:
- Category: Microscope
The XCAM series camera is the next-generation live-view imaging-system with 4K resolution(Video) at 60 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.
Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
ORDERING OPTIONS
HDMI WITH SD CARD SLOT ,WiFi+HDMI, 4K,WiFi+HDMI+AUTOFOCUS
This camera is the next-generation live-view imaging-system with 4K resolution(Video) at 60 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.
Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
| Interface & Button Functions | |
| USB | USB Camera or USB Mouse |
| HDMI | HDMI Output |
| DC12V | 12V Power in |
| SD | SD Card Slot |
| ON/OFF | Power On/Off Switch |
| Other Specification for HDMI Output | |
| UI Operation | With USB Mouse |
| Image Capture | JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) JPEG Format with 2M Resolution in SD Card |
| Video Record | ASF Format 1080P 30fps in SD Card |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
| Other Specification for WiFi Output | |
| UI Operation | ULTACAM 3.8 on Windows/Linux/OSX/Android Platform |
| WiFi Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) |
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine (WiFi) |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi) |
| Recording System | Still Picture or Movie (WiFi) |
| Software Environment (for USB2.0 Connection) | |
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More | |
| USB Port: USB2.0 High-speed Port | |
| Display: 19” or Larger | |
| CD-ROM | |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adaptor |
| Overall Dimensions | |
| Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) |
| Shipping Weight | 0.47 kg (1.0lbs) |
