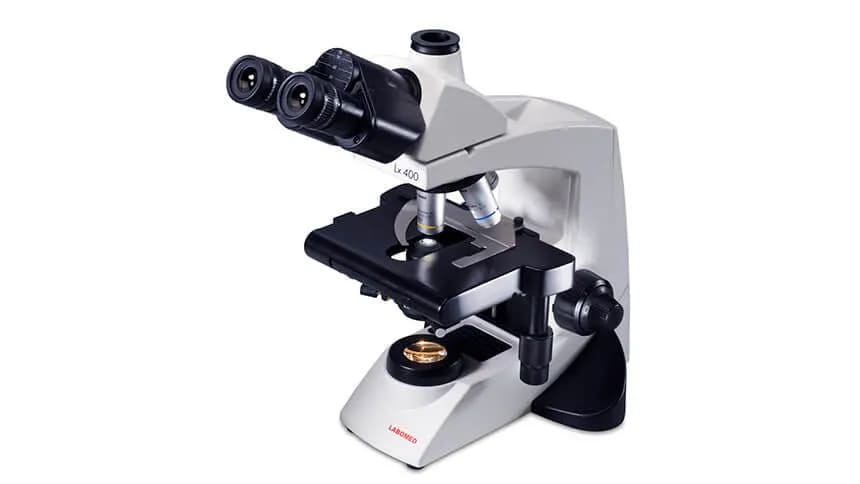

LABOMED LX-400 MICROSCOPE
LABOMED LX-400 MICROSCOPE

LABOMED LX-400 MICROSCOPE

  • Product ID:
  • Category: Microscope

RP series Infinity Corrected Plan Achromatic objectives and Extra Widefield focussable eyepieces provide large and accurate images at every turn. The system is modular for digital, fluorescent, and interference contrast applications.Highly efficient Halogen (approx. 2,000 hours bulb life) or eco friendly rechargeable LED (approx. 100,000 hours bulb life) light sources promise a bright and even field of illumination.A fluid focus drive and low positioned X/Y slide scanning controls promise comfort. A Rackless stage ensures user safety and maximum workspace utility.



  • Description
  • Specifications
  • Download






01

STABILITY

Specially designed U shared single mold stand for stability RP series Infinity Corrected Plan Achromatic objectives and Extra Widefield focussable eyepieces provide large and accurate images at every turn. The system is modular for digital, fluorescent, and interference contrast applications.




02

HIGH LUX

Highly efficient Halogen (approx. 2,000 hours bulb life) or eco friendly rechargeable LED (approx. 100,000 hours bulb life) light sources promise a bright and even field of illumination.



03

BACKLASH FREE FOCUSSING MECHANISM

A fluid focus drive and low positioned X/Y slide scanning controls promise comfort. A Rackless stage ensures user safety and maximum workspace



Microscope Specifications

  • Stand

    Single mold aluminum stand with hand rests for enhanced comfort and stability

  • Viewing Bodies

    Siedentopf Binocular or Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm

  • Eyepiece

    Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal

  • Nosepiece

    Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip

  • Objectives

    RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

  • Mechanical stage

    Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip

  • Condenser

    Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides

  • Focusing

    Coaxial coarse and fine focusing on ball drive system for smooth operation

  • Illumination

    Halogen 6V-20W/30W or LED (built in rechargeable battery) illumination with variable illumination control. Up to 2,000 hours of Halogen (20W) lamp life and 100,000 hours of LED life

  • Electronics

    Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer



Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
  • Dual Viewing Bridge
  • Quintuple Position Viewing Bridge
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Kohler Kit
  • Soft Carrying Case
  •

Package Contents

  • Power Cable (6ft)
  • Cargille Immersion Oil
  • Spare bulb (20w version only)
  • Nylon Dust Cover & Cleaning Cloth
  • Styrofoam Casing
