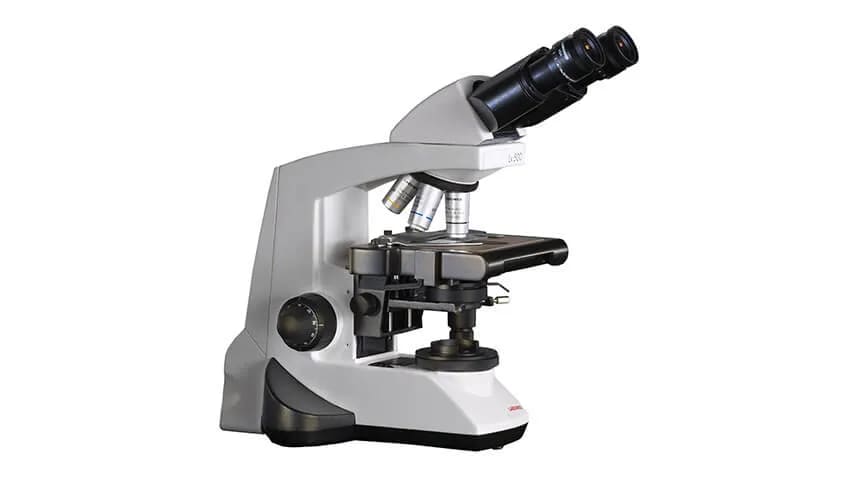

LABOMED LX-500 MICROSCOPE
LABOMED LX-500 MICROSCOPE

LABOMED LX-500 MICROSCOPE

  • Product ID:
  • Category: Microscope

The Lx 500 clinical microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.



  • Description
  • Specifications
  • Download

01



SUPER PLAN OPTICS

RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity. Proprietary MaxLite coatings further enhance optical performance.

02



ERGO HEAD

With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.



03



RACKLESS STAGE

A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.



Microscope Specifications

  • Stand

    Single mold sturdy stand with anti rust materials. Extended base for better stability

  • Viewing Body

    Binocular, Trinocular 30° and Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment

  • Eyepiece

    Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated

  • Nosepiece

    Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip

  • Objectives

    RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated

  • Mechanical stage

    Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder

  • Condenser

    Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides

  • Focusing

    Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation

  • Illumination

    rechargeable LED (approx. 100,000 hours).variable illumination control. LED option available.

  • Electronics

    Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer
