Product Details

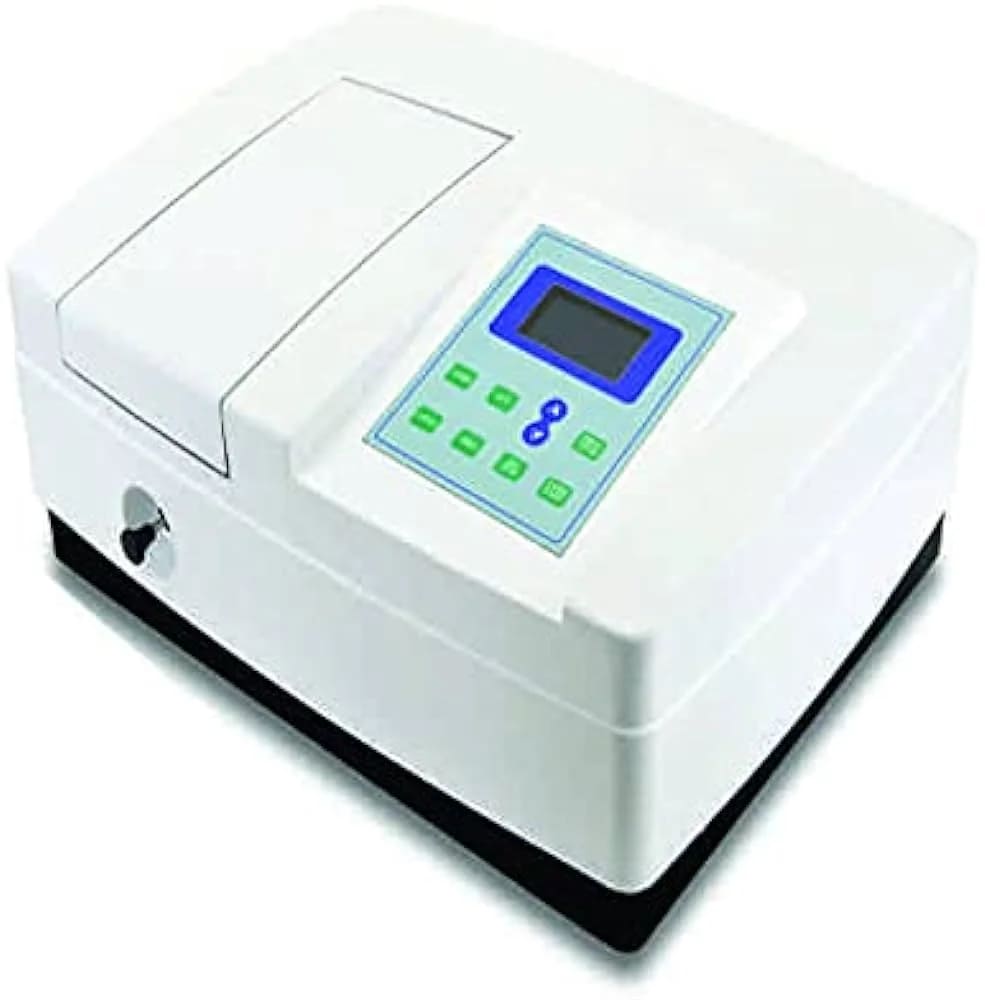

UV Visible Spectrophotometer LMSPUV1000B
UV Visible Spectrophotometer LMSPUV1000B

UV Visible Spectrophotometer LMSPUV1000B

  • Product ID:
  • Category: Spectrophotometer


LOW STRAY LIGHT
LMSPUV1000B is made of high quality components with rigid structure which ensures low stray light.

STABILITY AND DURABILITY
LMSPUV1000B uses a rigid die-cast aluminum base as Its optical mount to ensure instrument stability and Reliability.

STRANDED CURVE
LMSPUV1000B can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.

MULTIPLE RESULTS READOUT
LMSPUV1000B can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.

AUTO SETTING WAVELENGTH
Users can set wavelength automatically through arrow keys to avoid operation errors.

DATA OUTPUT
LMSPUV1000B is equipped with USB port to connected with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The software is optional.

Data can be restored after a sudden power cut.





  • Description
  • Specifications
  • Download



LOW STRAY LIGHT
LMSPUV1000B is made of high quality components with rigid structure which ensures low stray light.

STABILITY AND DURABILITY
LMSPUV1000B uses a rigid die-cast aluminum base as Its optical mount to ensure instrument stability and Reliability.

STRANDED CURVE
LMSPUV1000B can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.

MULTIPLE RESULTS READOUT
LMSPUV1000B can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.

AUTO SETTING WAVELENGTH
Users can set wavelength automatically through arrow keys to avoid operation errors.

DATA OUTPUT
LMSPUV1000B is equipped with USB port to connected with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The software is optional.

Data can be restored after a sudden power cut.






MODEL
LMSPUV1000B
Make
LABMAN
Optical System
Single Beam, Grating 1200 lines/mm
Wavelength Range
190-1000nm
Bandwidth
2nm
Wavelength Accuracy
1nm
Wavelength Repeatability
0.5nm
Wavelength Setting
Auto
Photometric Accuracy
0.5%T
Photometric Repeatability
 0.3%T
Photometric Range
 -0.3-3A,0-200%T
Stray Light
 0.3%T
Stability
0.002A/h@ 500nm
Display
LCD
Detector
Silicon Photodiode
Standard Cell Holder
4-position 10mm cell holder
Light Source
D2 lamp & Tungsten Halogen Lamp ( W Lamp)
Output
USB Port & Parallel Port(Printer)
Power Supply
AC 220V/50Hz
Dimension
490 x 370 x 220
Weight
15kg
