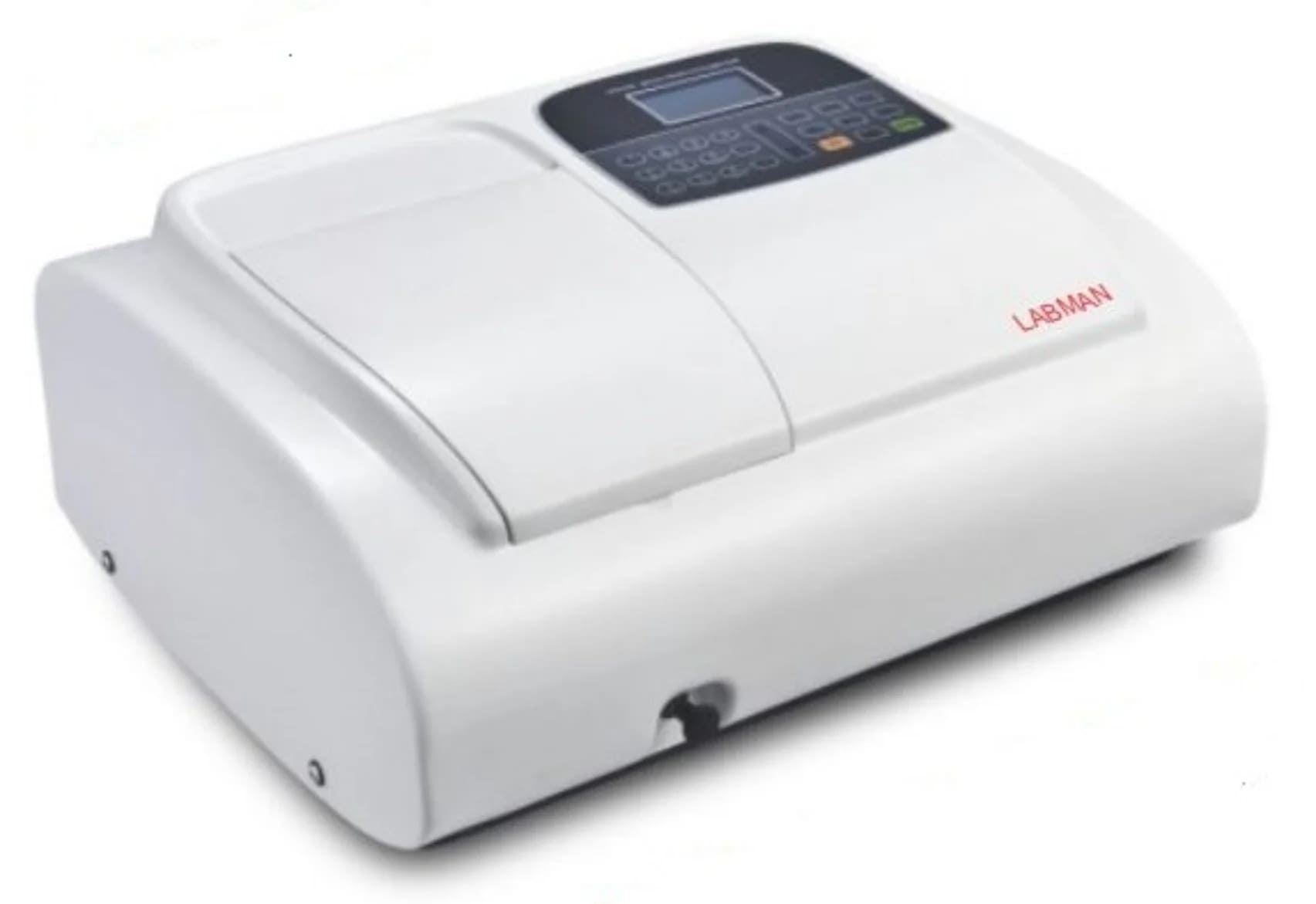

UV Visible Spectrophotometer LMSPUV1200
UV Visible Spectrophotometer LMSPUV1200

UV Visible Spectrophotometer LMSPUV1200

  • Product ID:
  • Category: Spectrophotometer



NUMERICAL KEYS
Microprocessor controlled, all parameters of this instrument can be easily set by numerical keys.

8MM THICK OPTICAL BASE
The instruments use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability

STANDARD CURVE
Can set up various standard curves according to customer's solutions and find the concentration of unknown solutions

AUTO SETTING WAVELENGTH
Users set wavelength automatically through arrow keys to avoid operation errors.

DATA OUTPUT
LMSP -UV1200 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen through the optional software.

IMPORTED HIGH QUALITY DEUTERIUM LAMP
This instrument uses imported flanged deuterium lamp with low stray light, photometric accuracy and easy replacing

Data can be restored after a sudden power cut.

Tungsten lamp & Deuterium lamp can be turned on/off individually to extend shelf life

Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders



  • Description
  • Specifications
  • Download



NUMERICAL KEYS
Microprocessor controlled, all parameters of this instrument can be easily set by numerical keys.

8MM THICK OPTICAL BASE
The instruments use a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability

STANDARD CURVE
Can set up various standard curves according to customer's solutions and find the concentration of unknown solutions

AUTO SETTING WAVELENGTH
Users set wavelength automatically through arrow keys to avoid operation errors.

DATA OUTPUT
LMSP -UV1200 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen through the optional software.

IMPORTED HIGH QUALITY DEUTERIUM LAMP
This instrument uses imported flanged deuterium lamp with low stray light, photometric accuracy and easy replacing

Data can be restored after a sudden power cut.

Tungsten lamp & Deuterium lamp can be turned on/off individually to extend shelf life

Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders



MODEL
LMSPUV1200
Make
LABMAN
Wavelength Range
190-1100nm
Bandwidth
2nm
Optical System
Single Beam, Grating 1200 lines / mm
Wavelength Accuracy
0.8nm
Wavelength Repeatability
0.2nm
Wavelength Setting
Auto
Photometric Accuracy
0.3%T
Photometric Repeatability
0.2%T
Photometric Range
-0.3-3A,0-200%T
Stability
 0.001A/h @ 500nm
Baseline Flatness
 0.002A/h
Stray Light
 0.05 % T
Data Output
USB
Printer Port
Parallel Port
Display
LCD
Cell Holder
10 mm 4 position cuvette holder
Lamps
D2 Lamp & Tungsten Halogen Lamp ( W Lamp )
Detector
Silicon Photodiode
Power Supply
AC 220V/50Hz
Dimension (LxWxH) mm
460x360x225mm
Weight
18kg
